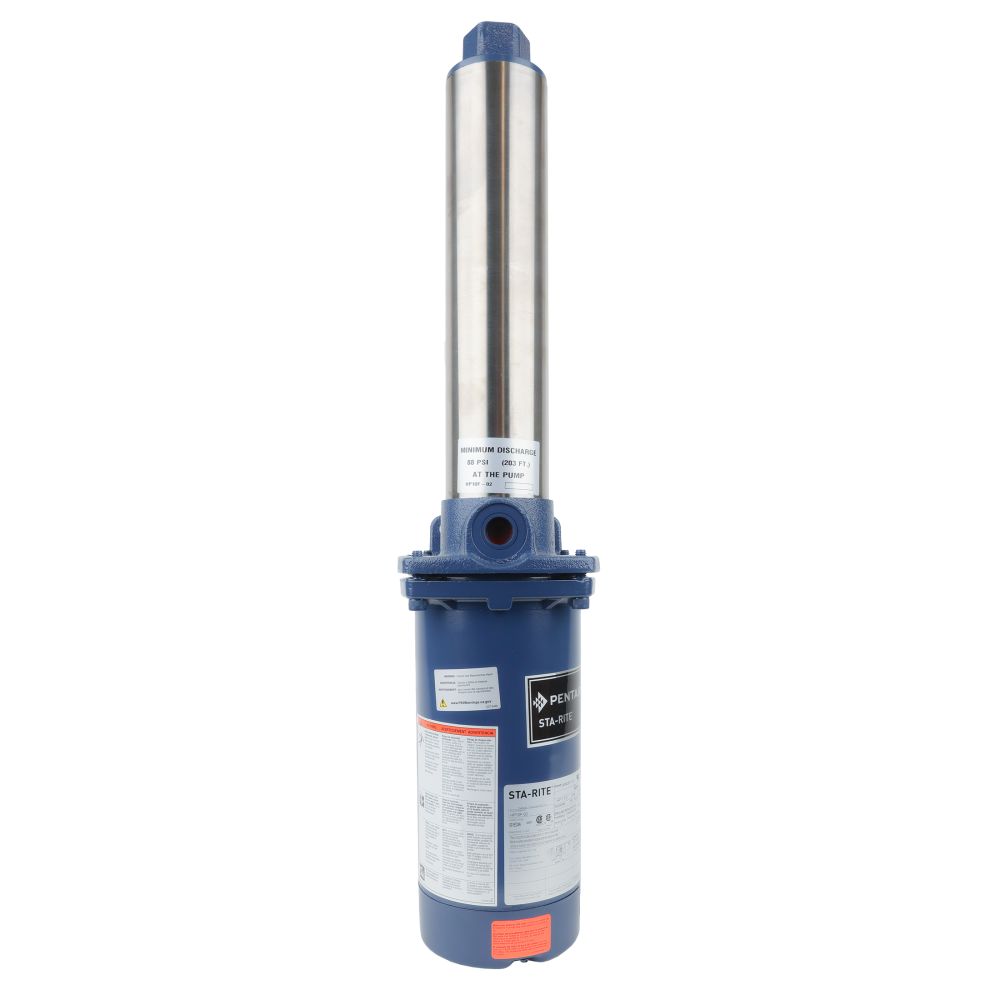

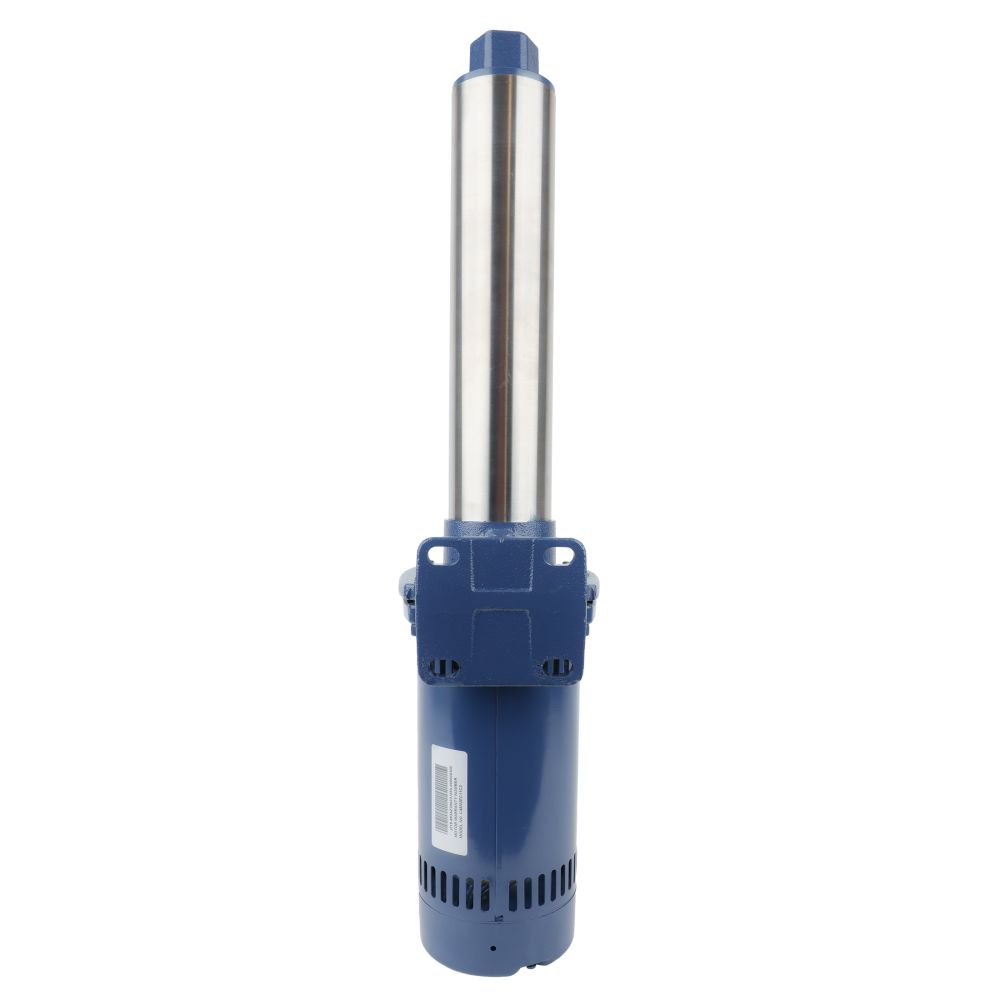

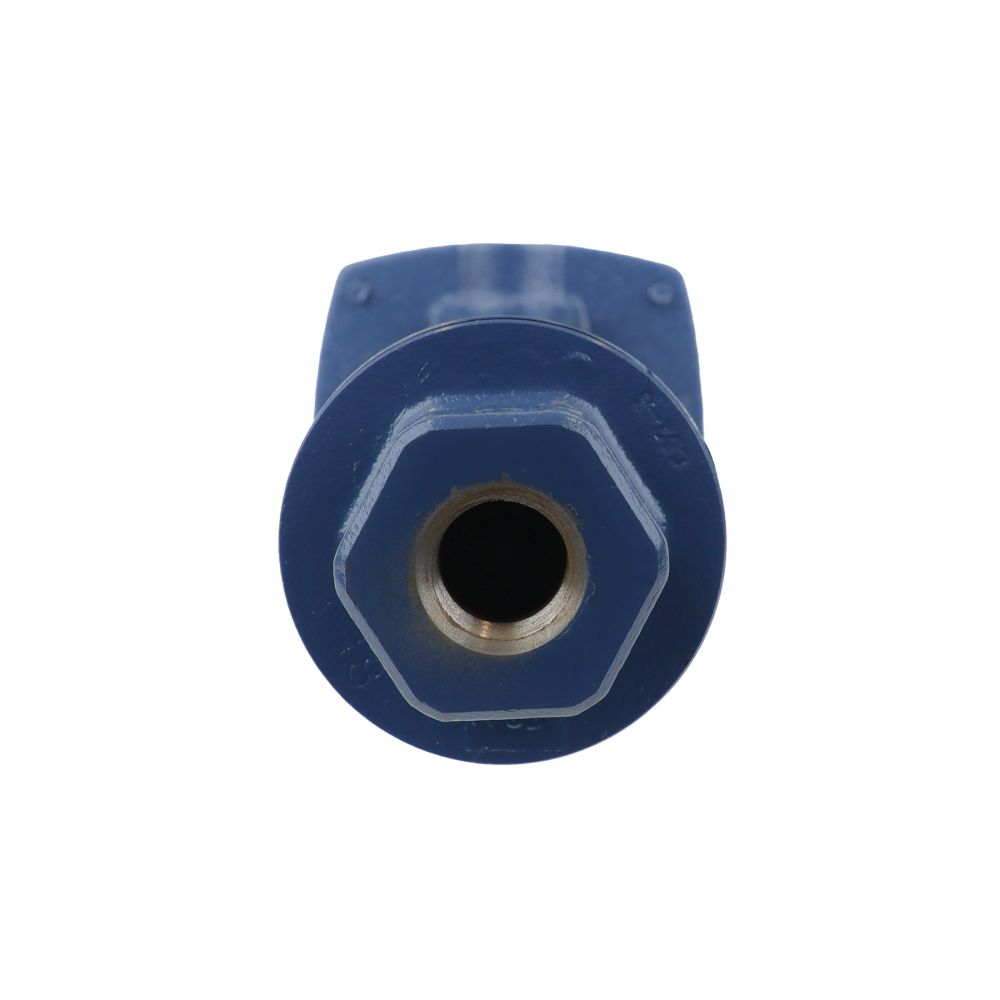

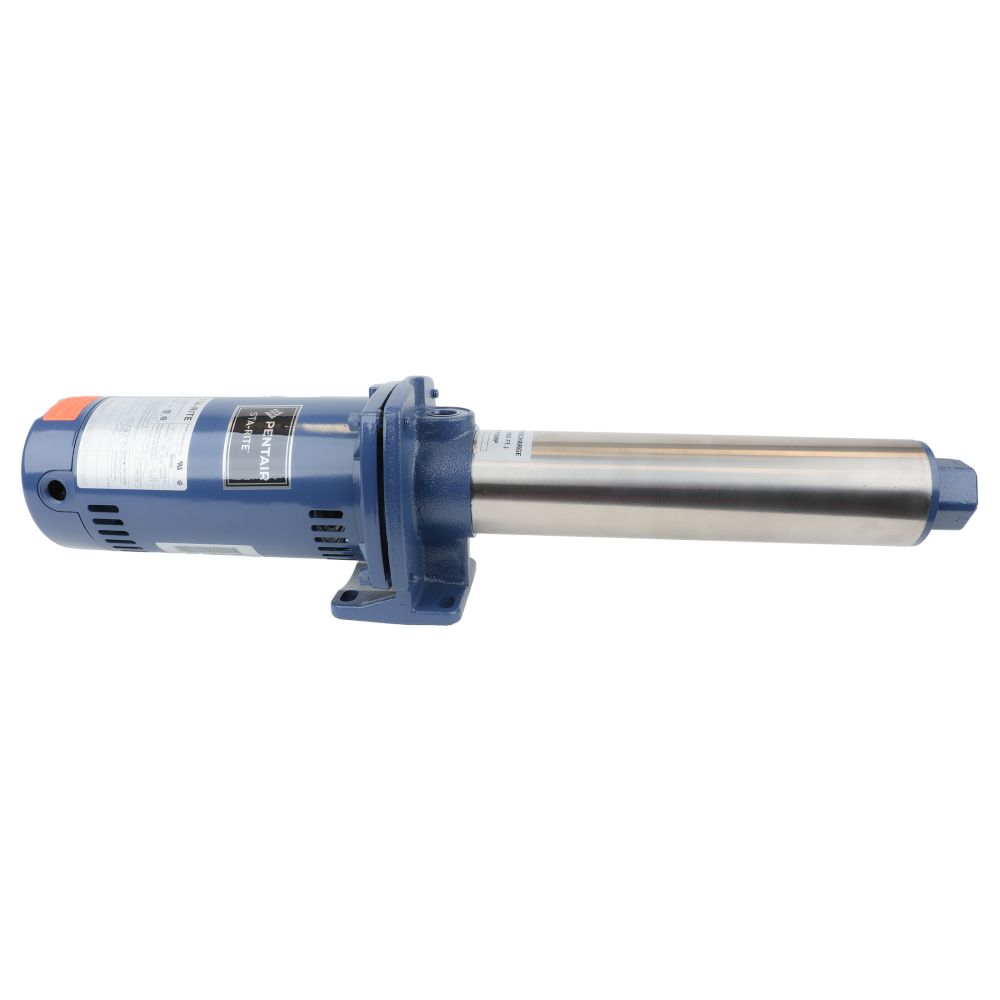

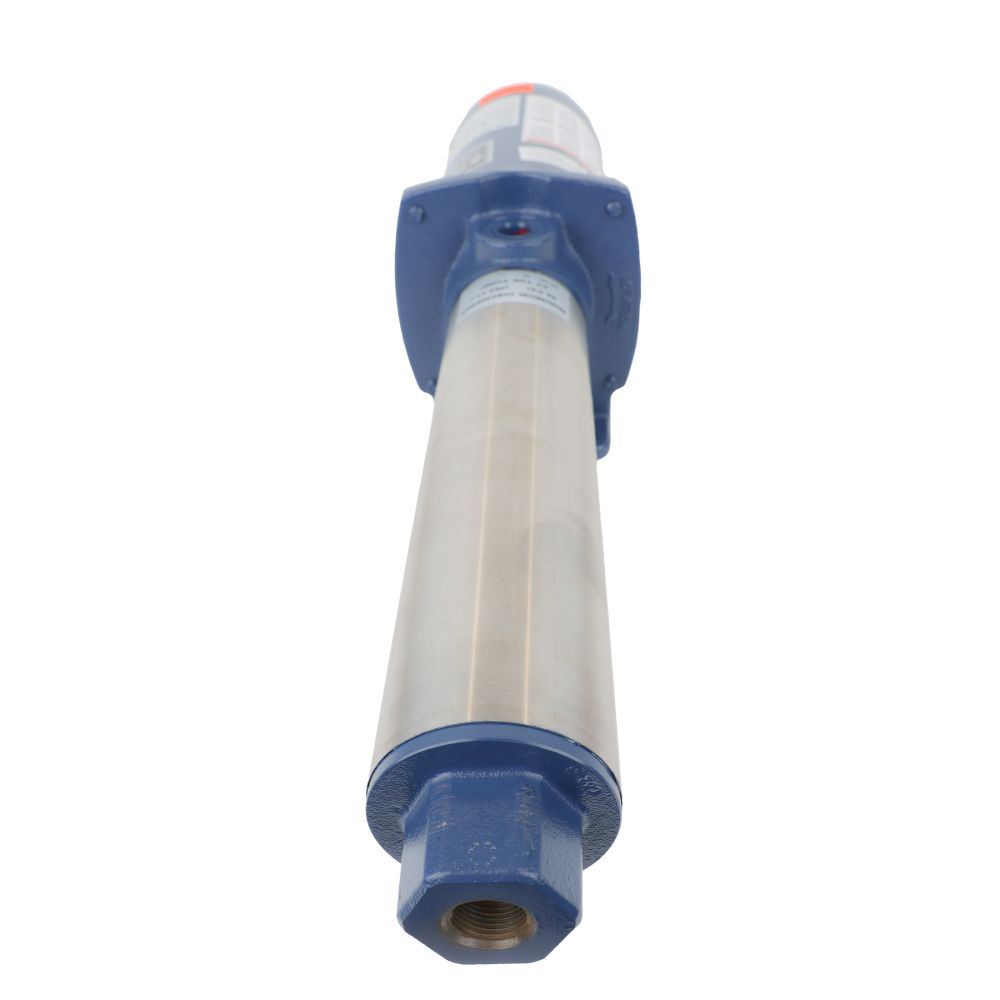

The Sta-Rite HP10F-02 High-Pressure Cast Iron Booster Pump features durable cast iron construction and a 1-1/2 HP motor designed for demanding commercial and agricultural pumping applications. Its SignalSeal™ floating impeller system helps protect the mechanical seal, motor bearings, and hydraulic components during continuous operation.

Key Features:

• SignalSeal™ Staging System: Ceramic wear surface delivers reliable performance while helping protect critical pump components.
• Sand Handling: Designed to handle sand and abrasive particles while managing thrust.
• Acetal Impellers: Precision-molded for balanced, efficient operation.
• Precision-Molded Diffusers: Resist corrosion and abrasion for reliable performance.

Applications:

• Commercial and agricultural pressure washing, including irrigation
• Booster and spray systems
• Reverse osmosis and water filtration
• HVAC systems
• General-purpose pumping

Specifications:

• Model: HP10F-02
• Horsepower: 1-1/2 HP
• Flow Rate: 10 GPM
• Phase: Single-phase
• Voltage: 115/230V
• Material: Cast iron
• Inlet Port: 3/4” NPT
• Outlet Port: 3/4” NPT

Note: Sta-Rite HP Series pumps are not suitable for domestic water applications
