Water Well Pressure Switches

Well pump pressure switches automatically control your well pump by turning it on and off as needed to maintain efficient pump cycles. Our water well pressure switches are built tough with durable, spring-loaded mechanisms that ensure precision and durability. Designed for reliability, they help prevent pump short-cycling and reduce wear and tear on your system.

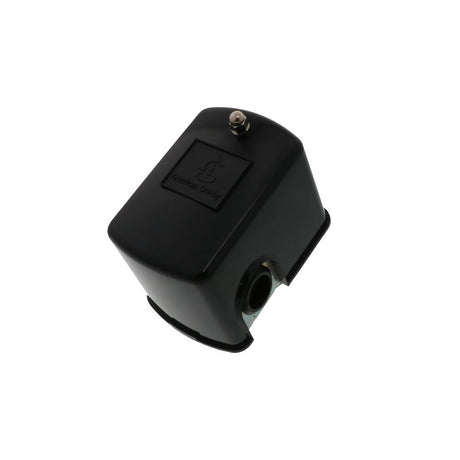

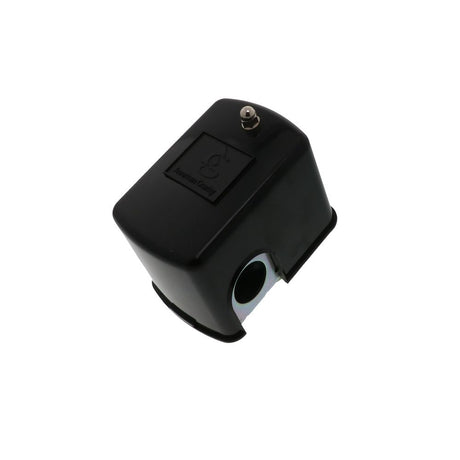

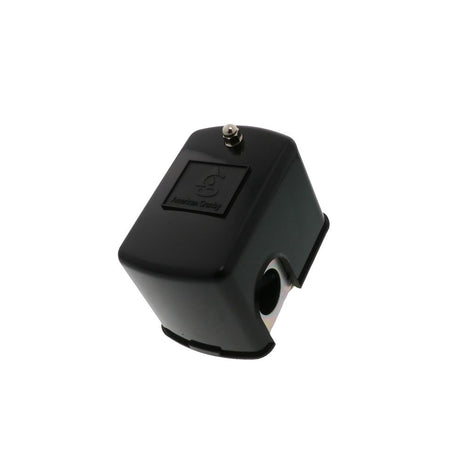

We offer a variety of preset ranges—20-40, 30-50, and 40-60 PSI—making it easy to find the right fit for your specific setup. Each switch is engineered for seamless compatibility with most water well pressure switches and tanks, so installation is straightforward and hassle-free.

Whether you're replacing a worn-out switch or upgrading to improve your system’s efficiency, Fresh Water Systems has you covered with high-quality options at competitive prices. Plus, our expert support team is ready to help you choose the best water well pressure switch for your needs. Shop our collection today and restore consistent water flow with ease—no hassle, no downtime.

How Does a Well Pump Pressure Switch Work?

A well pump pressure switch works with the pump and pressure tank to regulate water pressure throughout the system. As water is used, pressure inside the tank decreases. Once it reaches a predetermined level, known as the cut-in pressure, the switch activates the pump to replenish the water supply.

The pump continues running until the system reaches its cut-out pressure, at which point the switch shuts it off. This cycle allows the pressure tank to supply water between pump operations, reducing the need for the pump to run continuously.

Understanding Water Well Pressure Switch PSI Settings

Water well pressure switches are commonly identified by two numbers representing their cut-in and cut-out pressures. These settings determine when the pump starts and stops.

Common water well pressure switch settings include:

• 20/40 PSI: Activates the pump at 20 PSI and shuts it off at 40 PSI.
• 30/50 PSI: Starts the pump at 30 PSI and stops it at 50 PSI.
• 40/60 PSI: Turns the pump on at 40 PSI and off at 60 PSI.

The appropriate setting depends on your pump's capabilities, pressure tank, and plumbing system. Higher pressure settings are not necessarily better, especially if the pump cannot reliably reach the required cut-out pressure. Always verify the system's operating requirements before changing settings or installing a replacement water well pressure switch.

Signs of a Failing Well Pump Pressure Switch

A malfunctioning water well pressure switch can interfere with normal pump operation. Common warning signs include:

• Pump won't start: The pump fails to activate even when system pressure falls below the cut-in setting.
• Pump won't shut off: The pump continues running after pressure reaches the expected cut-out point.
• Frequent cycling: The pump repeatedly starts and stops over short periods.
• Inconsistent water pressure: Pressure fluctuates unexpectedly during normal water use.

These symptoms do not always indicate a faulty switch. Problems with the pressure tank, plumbing leaks, or pump performance can produce similar issues. Checking the overall system helps identify the actual cause before replacing components.

Choosing a Replacement Pressure Switch for a Well Pump

When replacing a pressure switch, matching the new component to your existing equipment is essential. Review the following specifications before ordering:

• Pressure range: Confirm the required cut-in and cut-out settings.
• Electrical ratings: Verify voltage, current, and motor horsepower compatibility.
• Connection size: Check the pressure port size and connection type.
• Switch configuration: Review available features and any additional system requirements.

If you're unsure which water well pressure switch fits your setup, Fresh Water Systems can help you compare specifications and identify compatible replacement options.

Water Well Pressure Switch Installation and Maintenance

Proper installation helps ensure the water well pressure switch responds accurately to system conditions. Pressure tank air precharge is particularly important because it must be coordinated with the switch's cut-in setting. For many conventional bladder-style pressure tanks, the recommended precharge is approximately 2 PSI below cut-in pressure, measured with the tank drained of water. Always verify the manufacturer's requirements.

Some water well pressure switches allow adjustments, but changes should remain within the pump and system's operating limits. Disconnect electrical power before servicing the switch and use a qualified professional when electrical work or pressure adjustments are needed.

Routine maintenance includes checking for corrosion, damaged connections, and unusual pressure readings. A pressure gauge can help monitor system behavior and identify potential problems. Follow the manufacturer's instructions for inspection, adjustment, and replacement to support reliable operation.
